What’s Up Tech Medical Imagine Communication Device
A non-invasive 3D imaging scanner for spinal diagnostics and treatment
What’s Up Tech
Medical Imagine Communication Device
The model parameters are defined to establish a database. Within the parameters, 3D mesh model is generated by the 3D point cloud structure. The model parameters are optimized using a combination of dataset.
Phase 1

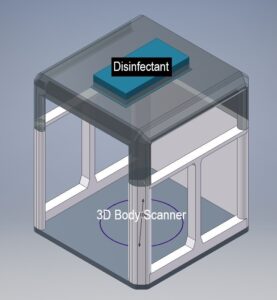

Instant 3D Digital Scanner
Within a few seconds, each shot produces a 3D point cloud structure corresponding to the human body, and the integrated 3D point cloud structure is produced by combining the points cloud generated by each shot device.
Phase 2
Define Model Registration
The model parameters are defined to establish a database, and the 3D mesh model is generated by the 3D point cloud structure. The model parameters are optimized using a combination of dataset.
Phase 3
Surface Measurement
The distance of circumference paths through mesh vertices that are registered throughout the mesh model are used as features for regression. Multiple paths are used to estimate a single anthropometric measurement.

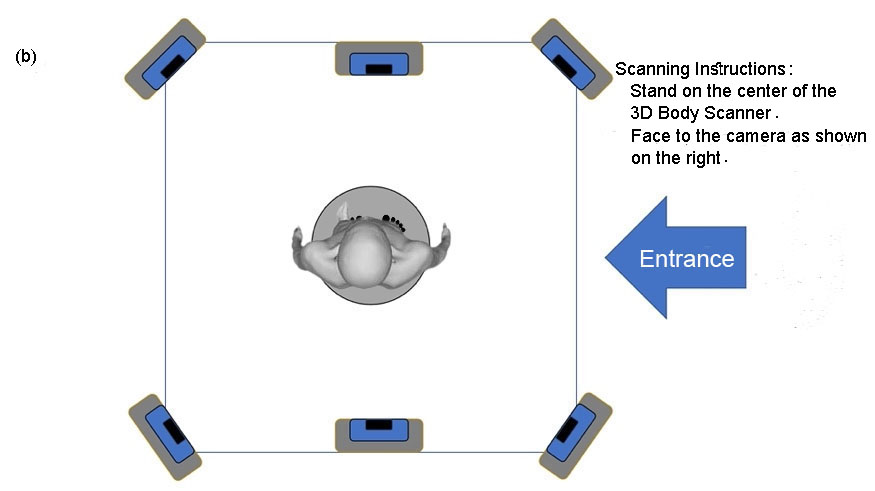

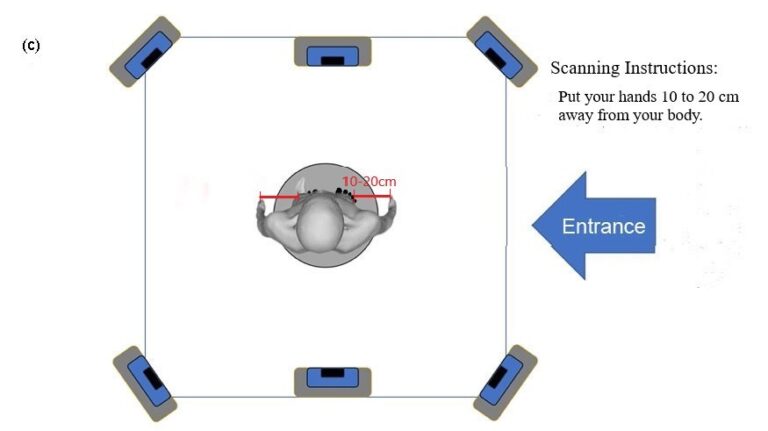

Scanning Procedures
Phase 4

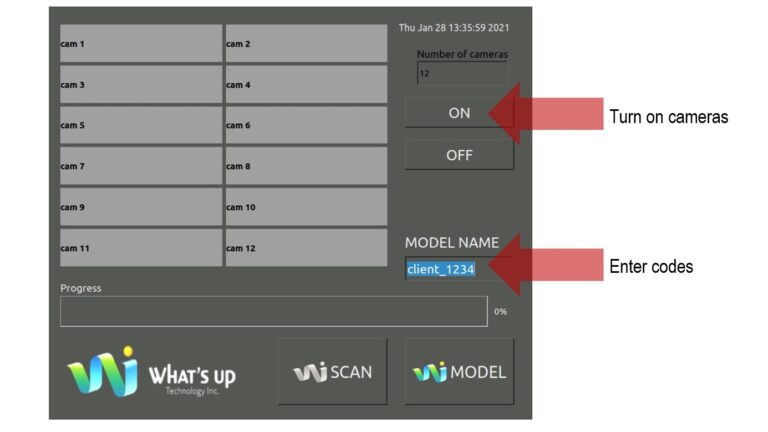

Create easy-to-understand Graphical User Interface for easy to use, simple and fast operation.
Phase 5
3D image transmission
The 3D image transmission device is an auxiliary device for digitizing the 3D shape of the patient and transmitting the result of medical image to the analysis device. The medical personnel can view the condition of the patient’s body and provide further correction treatment in the absence of the patient after the digital model reconstruction. In addition, the 1:1 digital model can provide the data to be used when ordering an orthodontic garment.
Taiwan Ministry of Health and Welfare Certification
This medical device has obtained the first-level medical device license from the Ministry of Health and Welfare.
By using this device, the hospitals can declared the certification and software validation of this product on their website:
- This device meet the Taiwan Food and Drug Administration requirements.
- Compliant with IEC 62304 medical equipment software validation.
